Powder Resistivity Testing Instrument

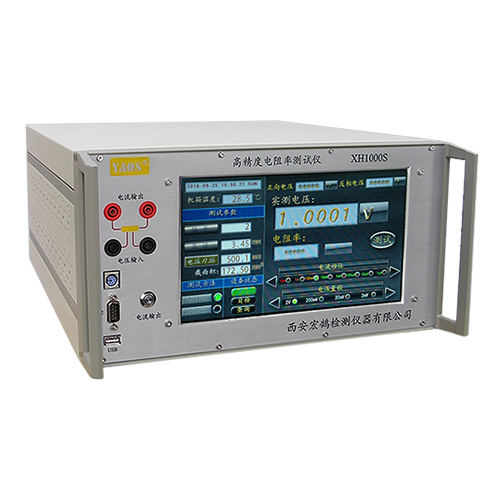

XH1000S_A102_FM Resistivity Testing Instrument

Main parameter

Brand name:YAOS

Place of Origin:China, Xi'an

Firm nature:Self-made

Product price:¥

Data download:

Product introduction

1.  XH1000S_A102_FM is an resistivity testing instrument that is independently designed and produced by Xi'an HongHu Testing Instrument Co., Ltd., which has the entire intellectrual property of the instrument.

2.  The system is composed by high-precision constant current source, high-precision voltmeter, and embbeded smart management system.

3.  The system uses 1024*600 resolution color touch screen to display testing process and parameters. The operation procedure is simple and concise, with testing information clearly showing up in the LED display.

4.  We provide custom-made service according to customers' specific needs. We accept OEM order from customers as well.

5.  We provide custom-made service to produce testing fixture according to customers' specific needs.



PRODUCT_CONTENT1_EN

  1. The system uses 1024*600 resolution color touch screen to display testing process and parameters. The operation procedure is simple and concise, with testing information clearly showing up in the LED display.

  2. Smart system self-test function: Let a customer to control system accuracy at any time.

  3. High precision, high stability testing result: gauranteed accuracy within 0.15%, actual accuracy under most options < 0.08%

  4. Testing model ID function: A customer can input the ID of the testing model, or let the system to automatically generate an ID by adding 1 to the previous ID number. This function allows a customer to classify all models and search easily in the future.

  5. Model parameters input: A customer can input testing model's diameter and testing powder container's voltage testing distance, which can be saved by the system automatically.

  6. Automatically display model's cross-sectional area.

  7. Simple and easy operational testing procedure. The touch screen can display clearly testing material's parameters, forward voltage, backward voltage, resistivity at the same time.

  8. Automatically test temperature within chasis; automatically activate cooling system when needed.

  9. The built-in clock provides accurate time for the system's recording of testing timestamp.

  10. Automatically record testing results of: test model ID, resistivity, testing timestamp.

  11. The system can record, search, or delete previous testing records.

  12. The system can rely on bundled software to upload testing records to computers, and generate testing data file in Excel format for customers to store, edit, or print.

  13. .....


Technical parameter

Main technical standards:

1. Testing range: 10-5—105Ω with resolution of 10-8Ω.

2. Digital voltmeter range and current output option:

    i. Voltmeter range: 2 mV, 20 mV, 200 mV, 2V

    ii. Current output option: 10uA,100uA,1mA,10mA,100mA, 1A, 10A, (20A optional)

3. Testing (voltage display) precision and stability:

    i. Service voltage range 20mV -- 2V and service current output option of 10uA -- 100mA:  ±(0.1% digit +6 characters)

    ii. Service voltage range 2mV and service current output option of 1A or 10A: ±(0.25% digit +8 characters)

    iii. Display: 4½ digits displaying 0 -- 1.9999 and the corresponding unit.

4. Power source: 220±10%   50HZ or 60HZ; Power < 50 Watt

5. Dimension:

    i. Testing instrument dimension: 340mm*480mm*145mm

    ii. Testing frame dimension: 230mm*180mm*230mm; Testing fixture follows standard: YS/T  587.6-2006
